Programming and Migration
Programming for conversion old servo motor configuration to new servo motor
Start up and fine tuning for each axis(Servo motor)

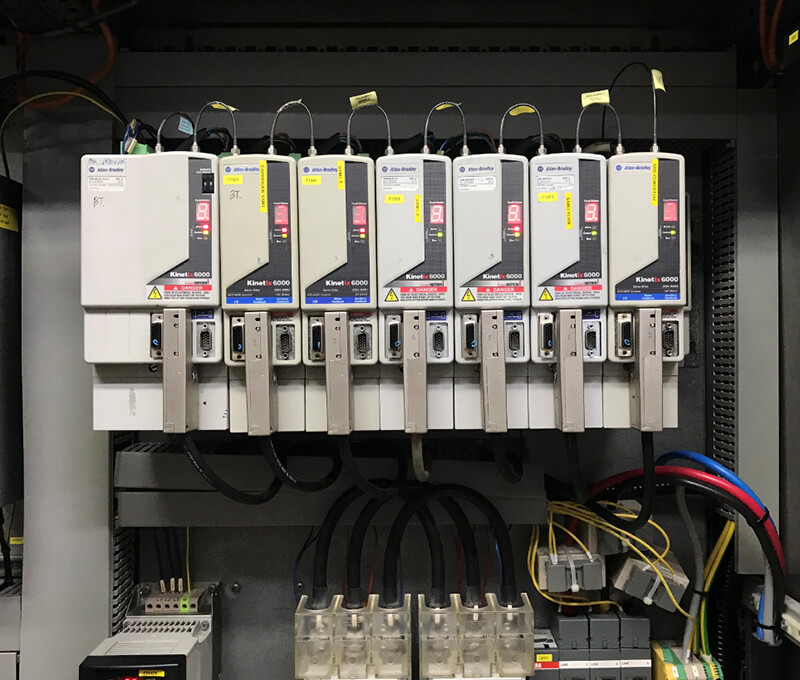

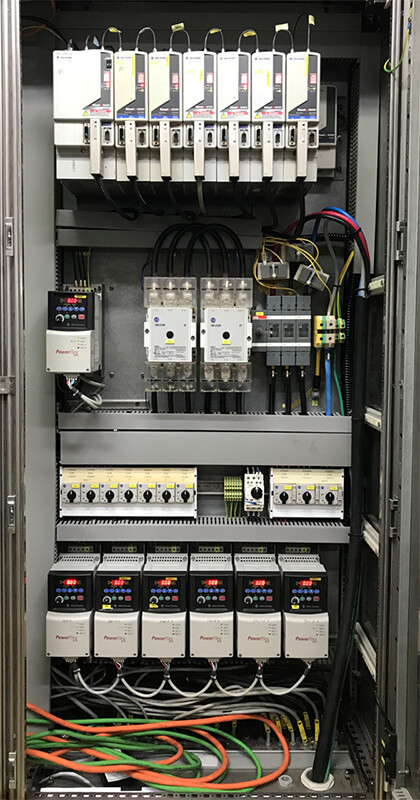

Migration Power and Control Device with wiring for Complete Operation and Safety
Replace MPL Servo Motor
- 4 MPL – Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 4000 RPM, Single-turn High-resolution Encoder.
- 2 MPL – Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 3 = 100 mm (3.94 in.), Stack Length 20 = 50.8 mm (2.0 in.), 5000 RPM, Single-turn High-resolution Encoder.
- 2 MPL – Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 4 = 115 mm (4.53 in.), Stack Length 20 = 50.8 mm (2.0 in.), 5000 RPM, Single-turn High-resolution Encoder.
Replace New Cable
SpeedTEC Cable, Motor Feedback Only, SpeedTEC DIN Connector, Drive-end, Flying-lead, SIN/COS High-Resolution/Resolver Encoder Type, Standard (Non-Flex)
